A-4085C Ventilation Louvres

  • A-4085C
  • 3D VIEW

A-4085C

3D VIEW

Continuous line ventilation louvres offering very good airflow and some rain defence.

null
null

INTAKE

null

EXHAUST

  • null
    Wide pitched extruded blade design for maximum airflow performance
  • null
    Blades designed to offer some protection from wind-driven rain in lower face velocities
  • null
    Hidden mullions for a continuous blade appearance on the façade
  • null
    Easy to install solution, delivered to site in component form
  • null
    Optional perimeter flashings and cill pan can be supplied
View 3D Model
Download Data Sheet
View Test Data

KEY FEATURES

  • Blade Orientation: Horizontal
  • Mullion Type: Hidden
  • Louvre Depth: 151mm
  • Blade Pitch: 100mm
  • Weight: 13kg/m2 based on a 2m x 2m module size

Download data sheet for sectional details

Download Data Sheet

PERFORMANCE

SUMMARY
  • Rain Penetration Class: C up to 1.0m/s
  • Airflow Class: 2 (entry & discharge)
  • Airflow Coefficient Ce (entry): 0.338
  • Airflow Coefficient Cd (discharge): 0.345
  • K factor (entry / discharge): 8.753 / 8.402
null
null

INTAKE

null

EXHAUST

WIND DRIVEN RAIN PERFORMANCE (EN 13030:2001)
Core Ventilation Rate (m/s)0.00.51.01.52.02.53.03.5
Penetration Class (13m/s & 75mm/hr)CCCDDDDD
Effectiveness (%)93.187.683.379.576.670.563.357.0
AirflowCoefficient of Entry Ce0.338Class 2Coefficient of Discharge Cd0.345Class 2
RESISTANCE TO AIRFLOW

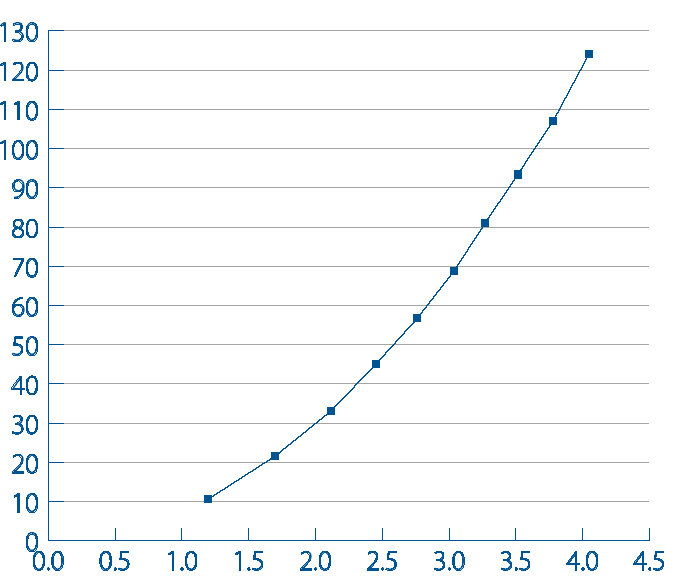

RESISTANCE TO AIRFLOW – ENTRY (Ce)2

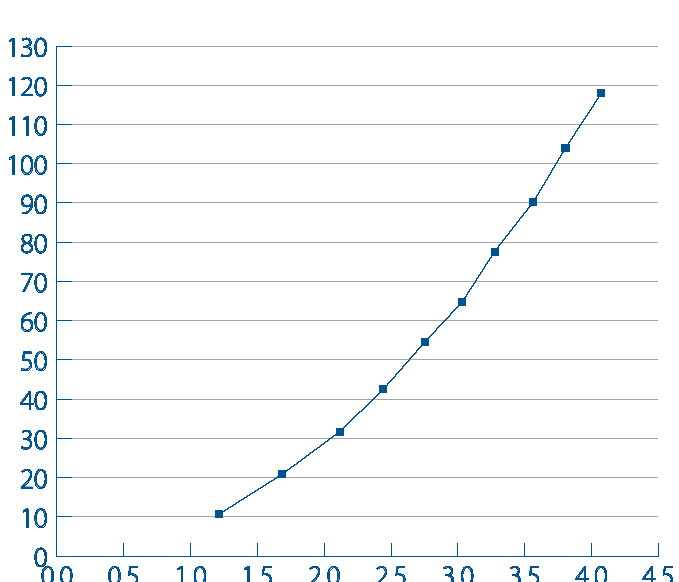

RESISTANCE TO AIRFLOW – DISCHARGE (Cd)2

Note: Based on a 1m x 1m size. Smaller louvres may have a higher Pressure Drop.

MATERIALS & FINISHES

MATERIALS
  • Aluminium alloy 6063-T6
FINISH OPTIONS
  • Mill finish
  • Clear or colour anodised
  • Polyester powder coated Matt (standard) or gloss

OPTIONAL EXTRAS

  • Perimeter flashings and cill pan
  • Blanking panels (single skin or insulated)
  • Bird / vermin guards, insect mesh
  • Louvred doors
  • Dampers
View all accessories
