129 mm deep, high-performance louvre offering excellent protection against wind-driven rain penetration, good airflow and a continuous line appearance on the façade.
ENTRY
DISCHARGE
- Complex extruded blade design in horizontal arrangement, for maximum rain defence performance
- Multiple channels in blades and vertical components, to collect and drain water from the louvred area
- Louvre blades are cut out around recessed black mullions, for a continuous line appearance
- Delivered to site as pre-fabricated modules, for efficient installation
- Sightproof design
Specification Calculators
We've built 2 tools to help you with your specification process. One to help you calculate pressure drop for your chosen CS Louvre model, the other to help you calculate the area of louvre required for your project.
KEY FEATURES
- Blade Orientation: Horizontal
- Joint Options:
- Horizontal: visible or invisible
- Vertical: recessed mullion (interlocking)
- Louvre Depth: 129mm
- Blade Pitch: 51mm
- Weight: 27kg/m2 based on a 2m x 2m module size
Download data sheet for sectional details
PERFORMANCE
SUMMARY
ENTRY
DISCHARGE
- Rain Penetration Class: A up to 3.0m/s

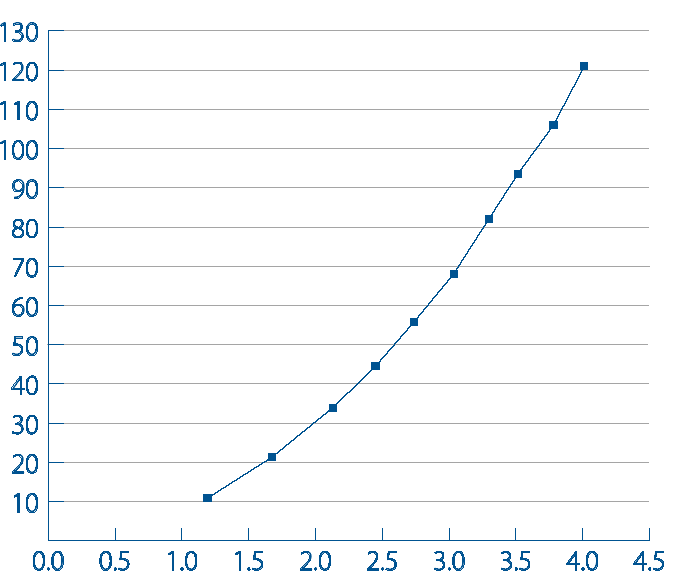

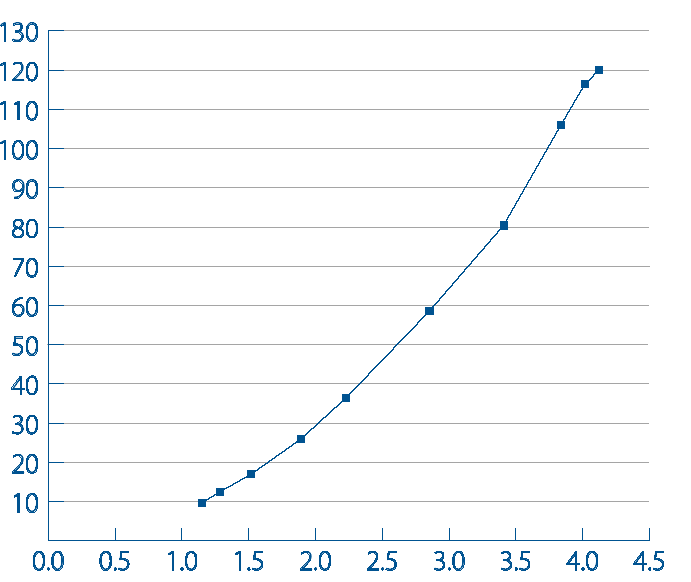

- Airflow Class: 2 (entry), 3 (discharge)
- Airflow Coefficient Ce (entry): 0.309
- Airflow Coefficient Cd (discharge): 0.274
See performance data sheet for full performance details.
MATERIALS & FINISHES
MATERIALS
- Aluminium alloy 6063-T6
- Aluminium components are manufactured with a minimum of 55% recycled content (mix of pre- and post-consumer scrap)
FINISH OPTIONS
Mullions powder-coated black as standard.
Louvre blades and perimeter frames:
- Mill finish
- Clear or colour anodised
- Polyester powder coated – matt (standard) or gloss
OPTIONAL EXTRAS
- Head / cill / jamb cover plates
- Blanking panels (single skin or insulated)
- Bird / vermin guards, insect mesh
- Dampers
- Louvred doors (depending on the type of door selected and the interface with the building, louvre performance may be affected)
PROJECTS
Specification
Guidance
The principal reason for using louvres is to allow the movement of air. But, louvre specification is a balance between form and function, with louvred façade appearance playing an important part in the selection process.
